Allen & Heath SQ-5 48-Channel / 16-Fader Digital Mixer (Open Box)
Allen & Heath SQ-5 48-Channel / 16-Fader Digital Mixer (Open Box)
SKU:
Low stock: 1 left
Couldn't load pickup availability
| Feature | Specification |
|---|---|
| Processing Engine | XCVI 96kHz FPGA |
| Input Channels | 48 |
| Onboard Preamps | 16 |
| Faders | 17 Motorized (16 channel + master) |
| Layers | 6 |
| Stereo Mixes | 12 (configurable as aux/groups) |
| Matrix Outputs | 3 Stereo |
| FX Engines | 8 Stereo + Dedicated Returns |
| FX Library | RackExtra |
| Display | 7" Capacitive Touchscreen |
| USB Interface | 32x32 @ 96kHz |
| USB Direct Recording | SQ-Drive to USB device |
| Expansion Port | SLink (up to 48 inputs) |
| Audio Networking | 64ch I/O Port (Dante/Waves optional) |
| EQ | Parametric & Graphic on every mix |
| AMM | Integrated Automatic Mic Mixing |
| Channel Metering | Chromatic LED |
| Chassis | All-metal with extruded light bar |
| Mounting | 19” Rack Mountable |
| Personal Mixing | Compatible with ME-1/ME-500 |

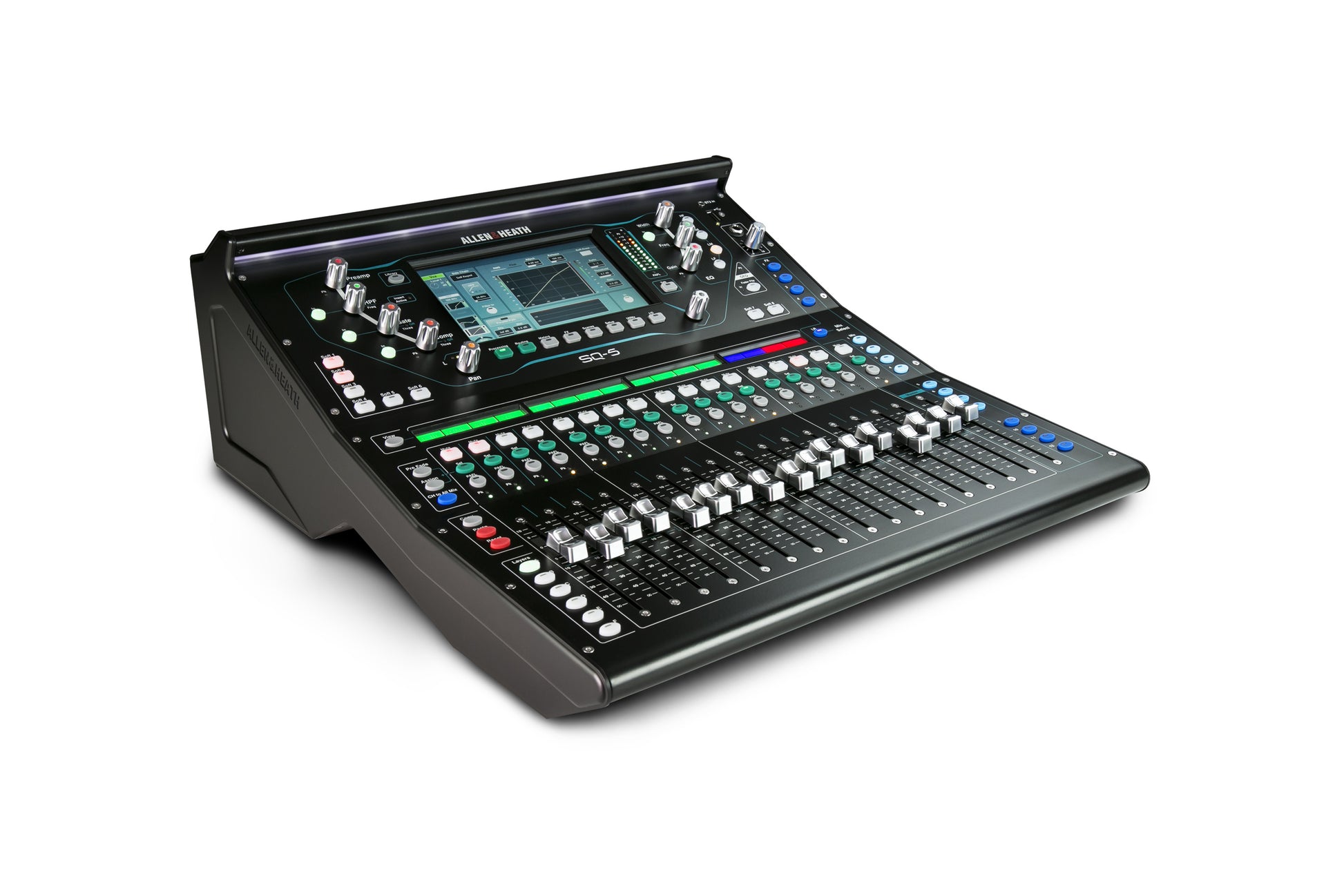

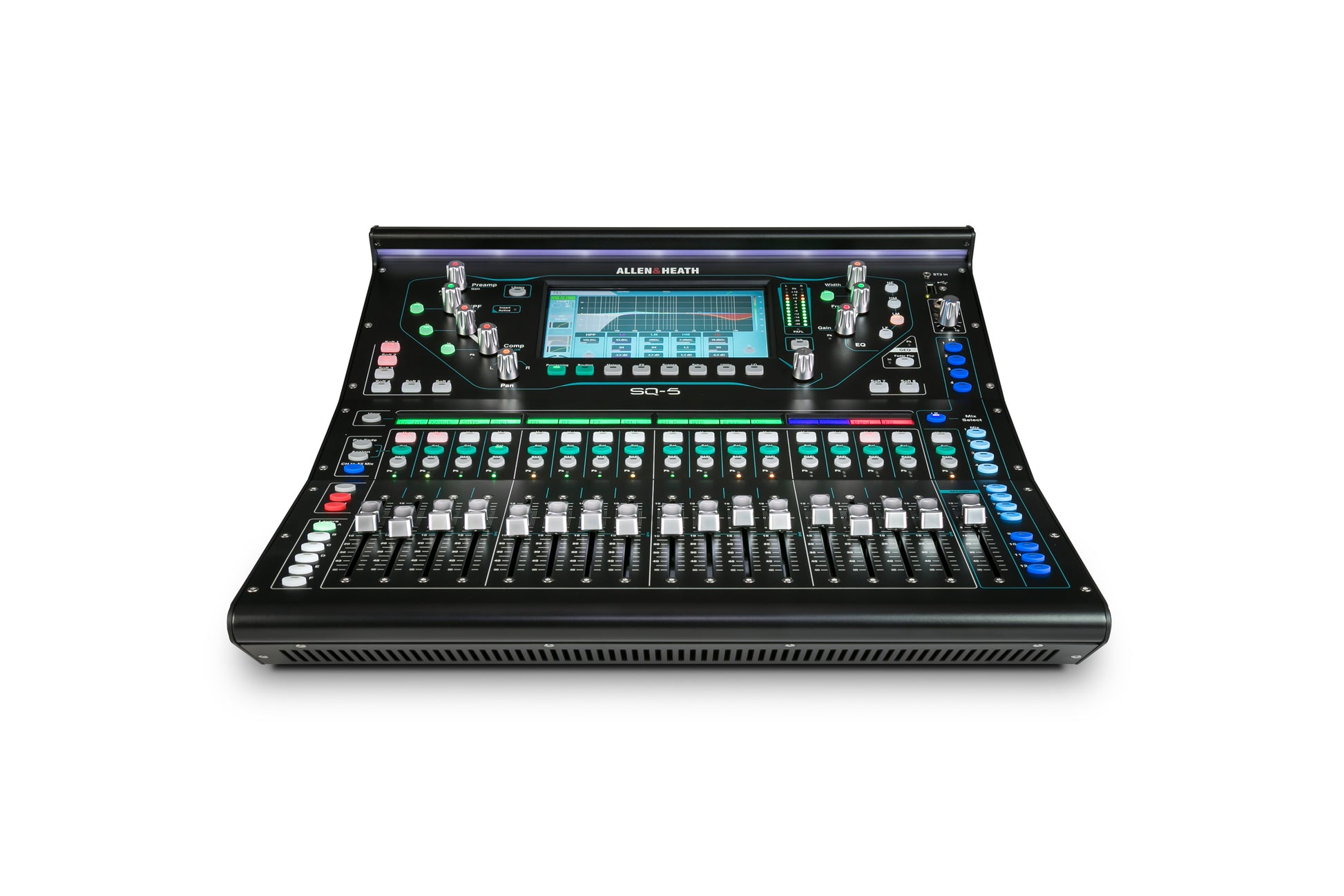

Built for demanding live sound environments, the Allen & Heath SQ-5 delivers pristine 96kHz audio powered by the XCVI FPGA engine. With 48 input channels, 16 onboard preamps, and 17 motorized faders across 6 layers, the SQ-5 provides deep flexibility and control for professionals in touring, broadcast, corporate AV, or house of worship applications.
The mixer features 12 configurable stereo mixes, perfect for advanced IEM setups, plus 8 stereo FX engines with dedicated returns utilizing the acclaimed RackExtra FX library. DEEP processing architecture enables boutique compressor and preamp models to run natively on inputs and mixes, with zero added latency.

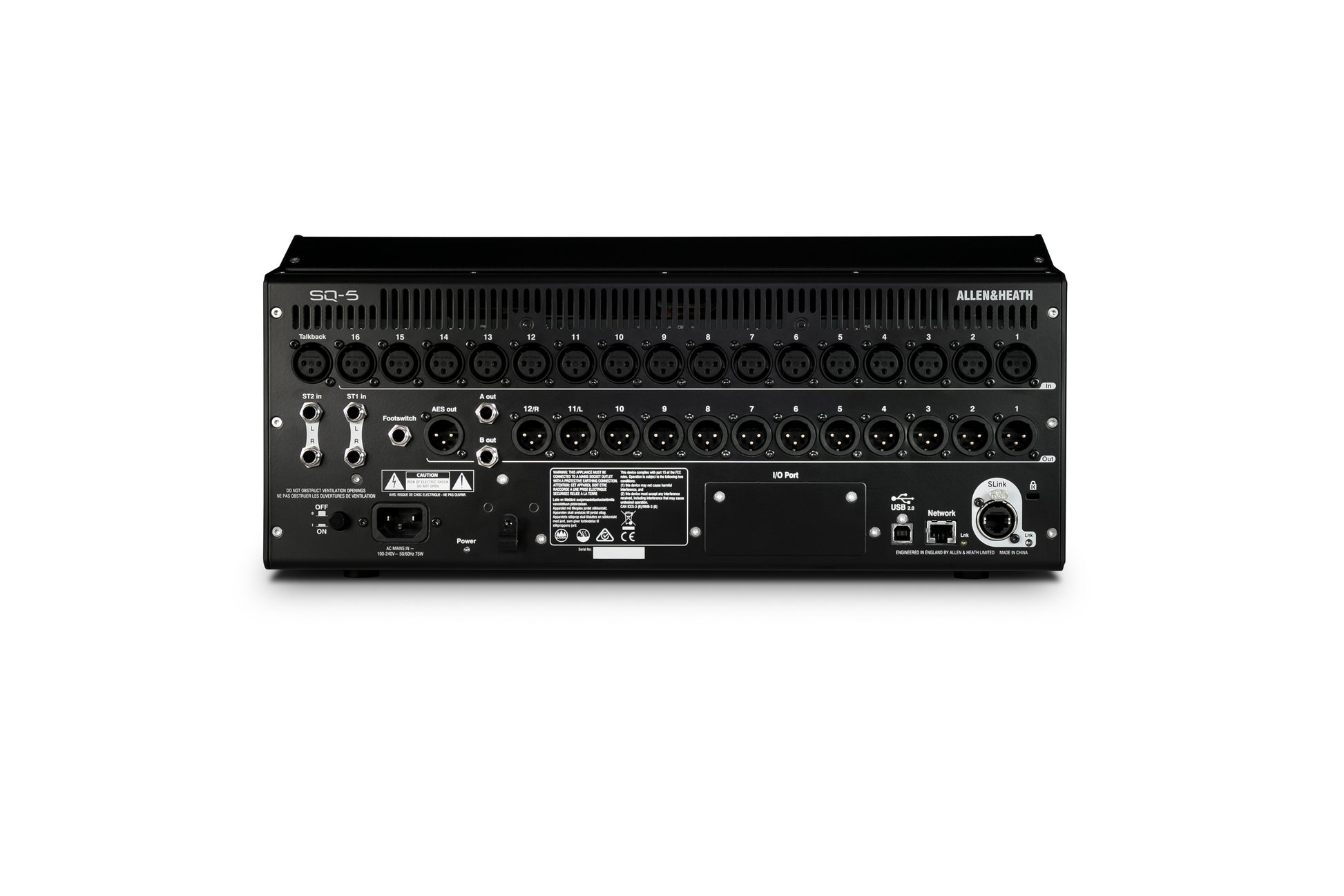

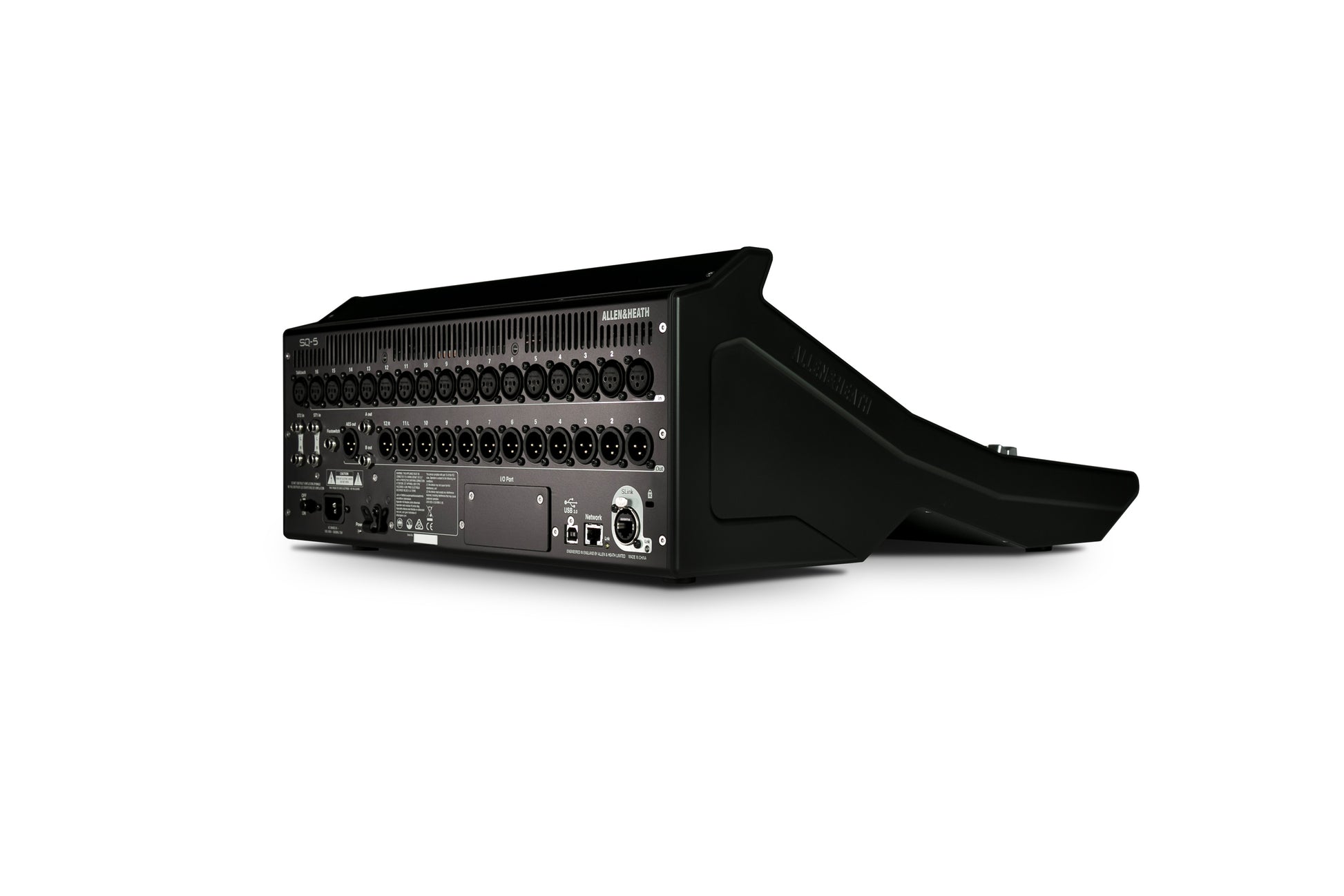

Its compact, rugged chassis houses a high-resolution 7” touchscreen surrounded by dedicated controls, chromatic metering, assignable SoftKeys, and clear channel displays. SQ-Drive offers plug-and-play 96kHz multitrack recording to USB, while a 32×32 USB audio interface supports virtual soundchecks and DAW control. The SLink port allows expansion up to 48 mic inputs or integration with other A&H systems. Optional Dante or Waves cards provide further audio networking capabilities.
Certified working by our technicians. Final sale.
